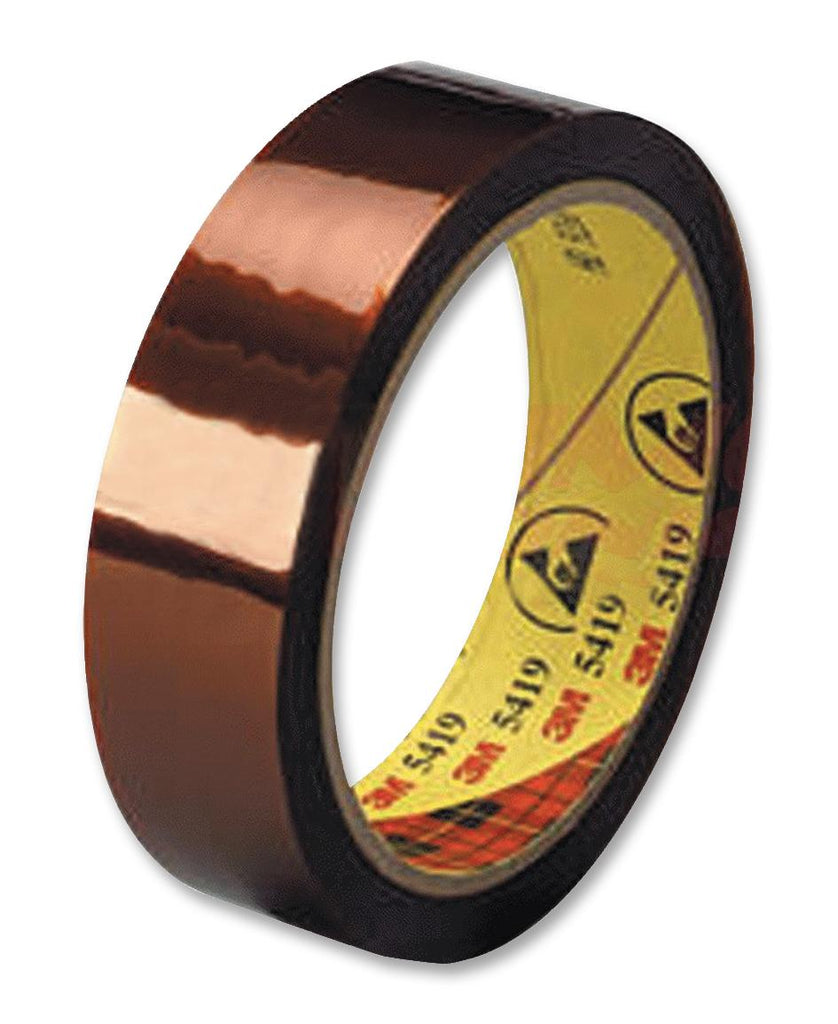

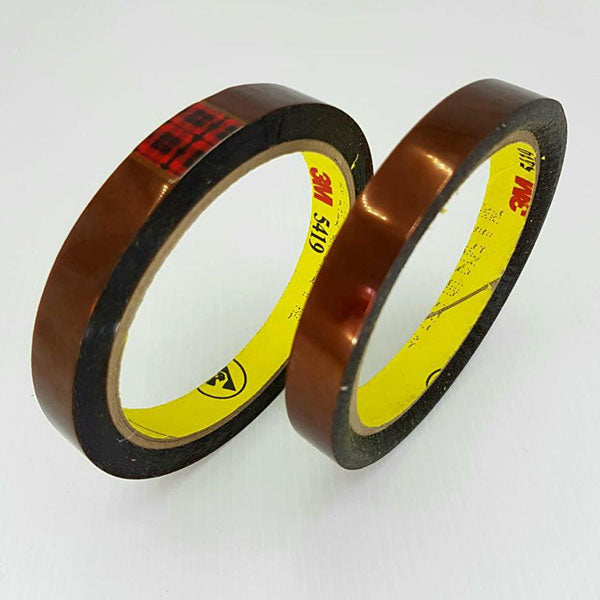

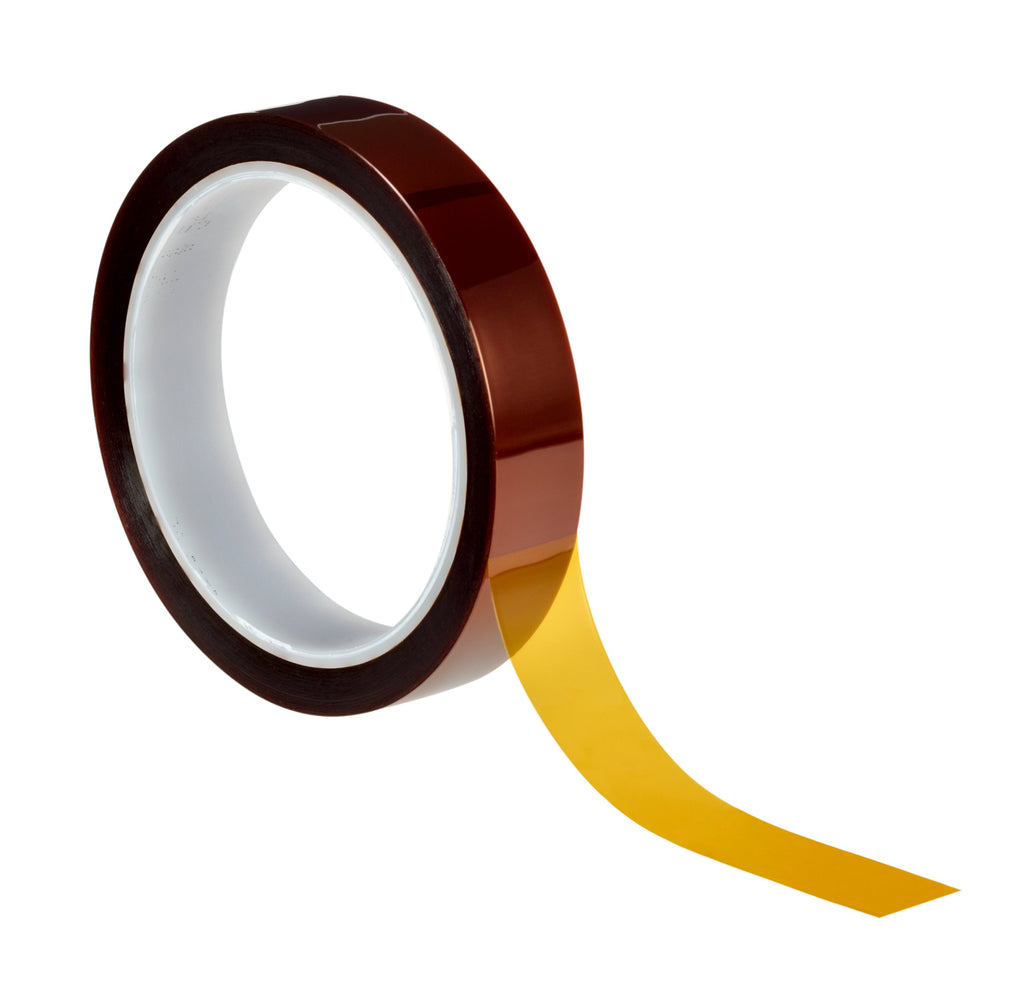

The 3M™ Co. 5419 Low-Static DuPont™ Kapton® Polyimide Film Tape

The 3M™ Co. 5419 Low-Static DuPont™ Kapton® Polyimide Film Tape
The 3M™ Co. 5419 Low-Static DuPont™ Kapton® Polyimide Film Tape
The 3M™ Co. 5419 Low-Static DuPont™ Kapton® Polyimide Film Tape
The 3M™ Co. 5419 Low-Static DuPont™ Kapton® Polyimide Film Tape
  • Load image into Gallery viewer, The 3M™ Co. 5419 Low-Static DuPont™ Kapton® Polyimide Film Tape
  • Load image into Gallery viewer, The 3M™ Co. 5419 Low-Static DuPont™ Kapton® Polyimide Film Tape
  • Load image into Gallery viewer, The 3M™ Co. 5419 Low-Static DuPont™ Kapton® Polyimide Film Tape
  • Load image into Gallery viewer, The 3M™ Co. 5419 Low-Static DuPont™ Kapton® Polyimide Film Tape
  • Details

    • DuPont™ Kapton® polyimide film does not soften at elevated temperatures, thus the film provides an excellent release surface at elevated temperatures
    • No rework required, enabling high productivity
    • Protects surfaces helping reduce replacement parts
    • Available on cardboard or polyethylene core

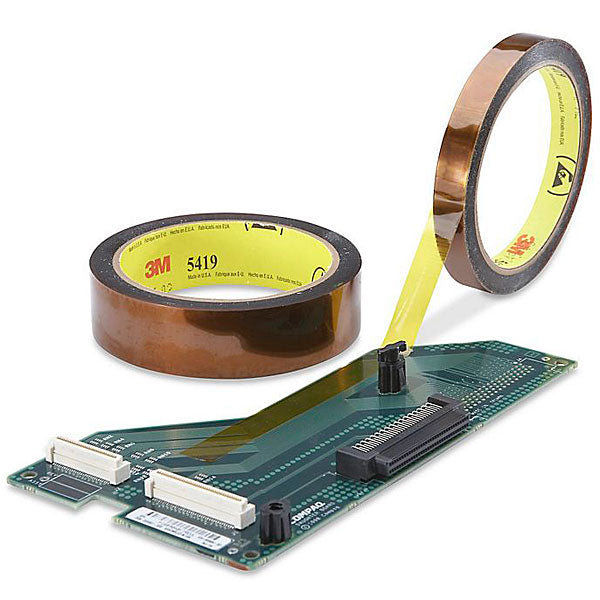

    3M™ Low-Static Polyimide Film Tape 5419 with DuPont™ Kapton® polyimide film and silicone adhesive used for PCB solder masking and other high-temperature applications. Low-Static. Gold, 2.7-mil thick. .

    Employs a proprietary technology that results in extremely low electrostatic discharge at unwind and removal from the PWB. Conventional polyimide tapes can typically generate over 10,000 volts during use which can damage board mounted electronic components. 3M tape 5419 overcomes this problem without any of the typical drawbacks of conventional "anti-static" or "static-free" tapes (e.g., variable adhesion and opaqueness).

    Standard Lead Time: 7 Calendar Days.



    Available Variations

    Color Width Length Rolls
    per case
    Tensile
    lbs/in width
    Adhesion
    oz/in width
    Thickness
    mils
    Elongation
    percent
    Packaging Country of Origin
    Amber 1/2 in 36 yd 18 33 20 2.7 60 industrial USA
    Amber 3/4 in 36 yd 12 33 20 2.7 60 industrial USA
    Amber 1 in 36 yd 9 33 20 2.7 60 industrial USA
    Amber 2 in 36 yd 6 33 20 2.7 60 industrial USA
