The 3M™ Co. 5481 Skived PTFE Film Tape

The 3M™ Co. 5481 Skived PTFE Film Tape
The 3M™ Co. 5481 Skived PTFE Film Tape
  • Load image into Gallery viewer, The 3M™ Co. 5481 Skived PTFE Film Tape
  • Load image into Gallery viewer, The 3M™ Co. 5481 Skived PTFE Film Tape

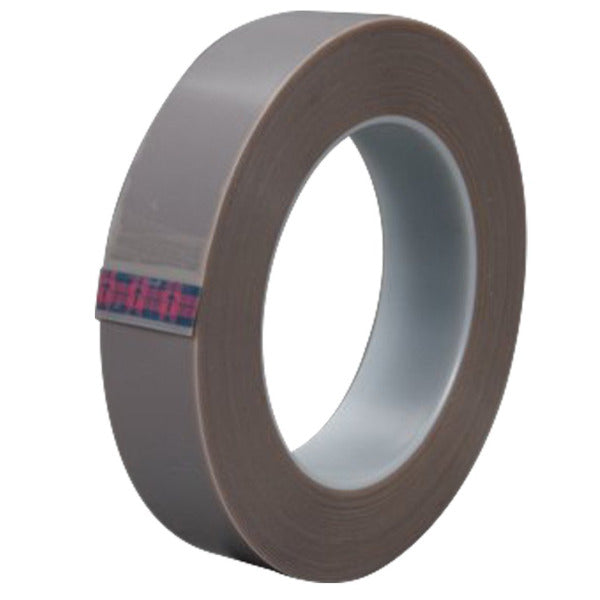

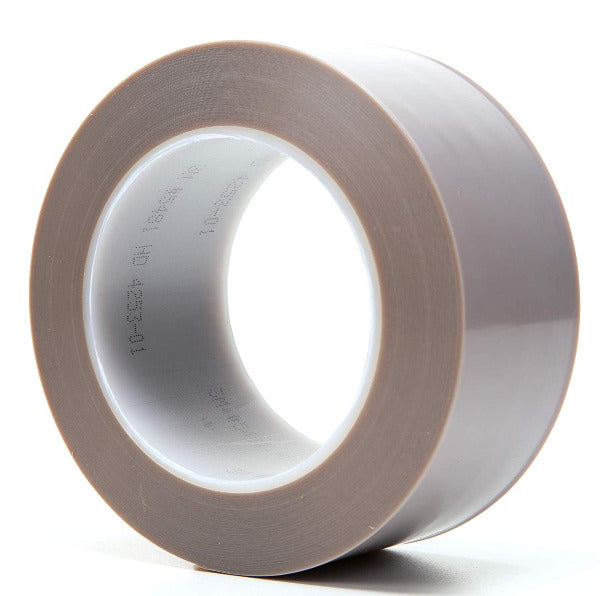

  • 3M™ PTFE Skived Film Tape 5481 uses a skived, polytetrafluoroethylene (PTFE), conformable film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of web materials in many types of roll-wrap applications. An Exceptionally Slick Surface.

    The skived film backing provides good conformability when unwound from the roll compared to typical extruded PTFE film tapes. 3M developed this tape as a quick and easy solution to reduce friction between moving surfaces. It functions as an anti-stick or easy-release medium between surfaces where pressure, temperature changes and other factors may create a measure of adhesion.

    Applying 3M™ PTFE Skived Film Tape 5481 can help improve surface movement, eliminate squeaks and rattles, and reduce machine noise. PTFE is chemical resistant and can be used as a temporary chemical barrier.

    The tape has a wide temperature use range, from -65°F/-54°C to 500°F/260°C, making it suitable in a wide variety of applications.

    Available Variations

    Color Width Length Rolls
    per case
    Tensile
    lbs/in width
    Adhesion
    oz/in width
    Thickness
    mils
    Elongation
    percent
    Packaging Country of Origin
    Gray 1/2 in 36 yd 18 59 32 6.8 290 industrial USA
    Gray 3/4 in 36 yd 12 59 32 6.8 290 industrial USA
    Gray 1 in 36 yd 9 59 32 6.8 290 industrial USA
    Gray 2 in 36 yd 6 59 32 6.8 290 industrial USA
