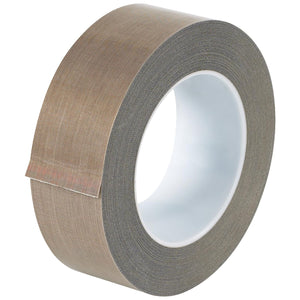

Merco Tape® M813-5 PTFE Glass Cloth Silicone Adhesive Tape - 5 mil ~ similar to 3M 5451
Merco M813 PTFE (commonly but incorrectly referred to as Teflon) is constructed using Polytetrafluoroethylene (PTFE) impregnated glass cloth and a high-quality silicone adhesive.
Merco Tape® M813 Glass Cloth PTFE tape is ideal for applications requiring both high temperature performance and high abrasion resistance. Typically used on packaging and heat-sealing machines, ironing, pressing equipment and other surfaces subject to constant hard use.
Available in 2, 3 and 5 mil overall thicknesses
| Specifications and Technical Data Sheet | Material Safety Data Sheet (MSDS, AIS or SDS) |
Available Variations
| Color | Width | Length |
Backing Thickness |
Total Thickness |
Adhesion oz/in width |
Tensile lbs/in width |
Elongation percent |
Dielectric Strength |
Op. Temp. |
|---|---|---|---|---|---|---|---|---|---|
| Brown | 0.50 | 36 yd | 3 mil |
5 mil | 30 | 100 | 5 | 2400 | -100F - 500F |
| Brown | 0.75 | 36 yd | 3 mil | 5 mil |
30 | 100 | 5 | 2400 | -100F - 500F |
| Brown | 1.00 | 36 yd | 3 mil | 5 mil | 30 | 100 | 5 | 2400 | -100F - 500F |
| Brown | 1.50 | 36 yd | 3 mil | 5 mil | 30 | 100 | 5 | 2400 | -100F - 500F |
| Brown | 2.000 | 36 yd | 3 mil | 5 mil | 30 | 100 | 5 | 2400 | -100F - 500F |
| Brown | 3.000 | 36 yd | 3 mil | 5 mil | 30 | 100 | 5 | 2400 | -100F - 500F |
